Powerful 1 watt Signal Output
Compatible with most 8 & 33 kHz Cable Locators
Compact Lightweight Design
Rechargeable Li-Ion Battery
3 Year Manufacturer Warranty
Fast Easy Secure Shopping
No Account Required

Description

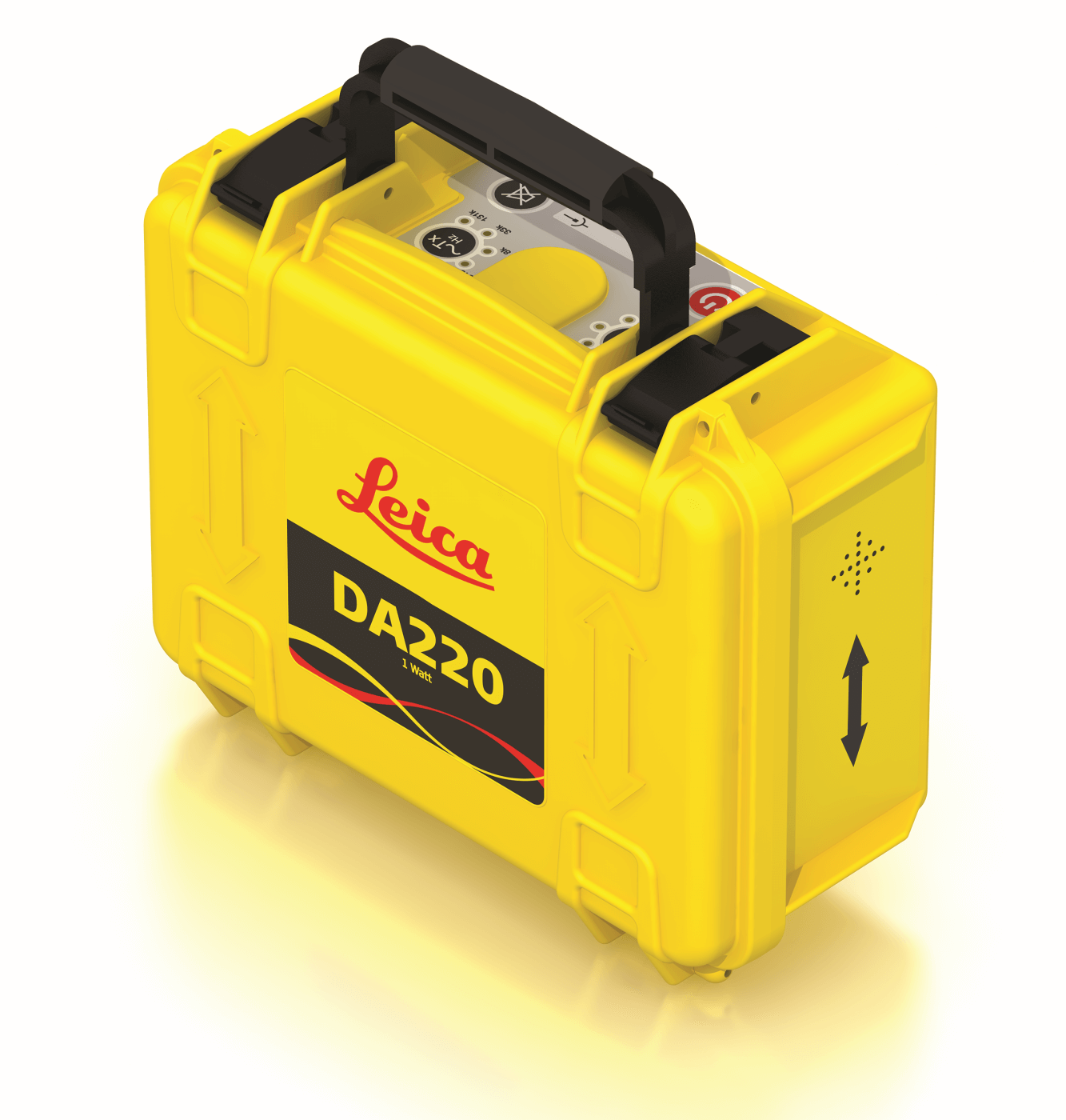

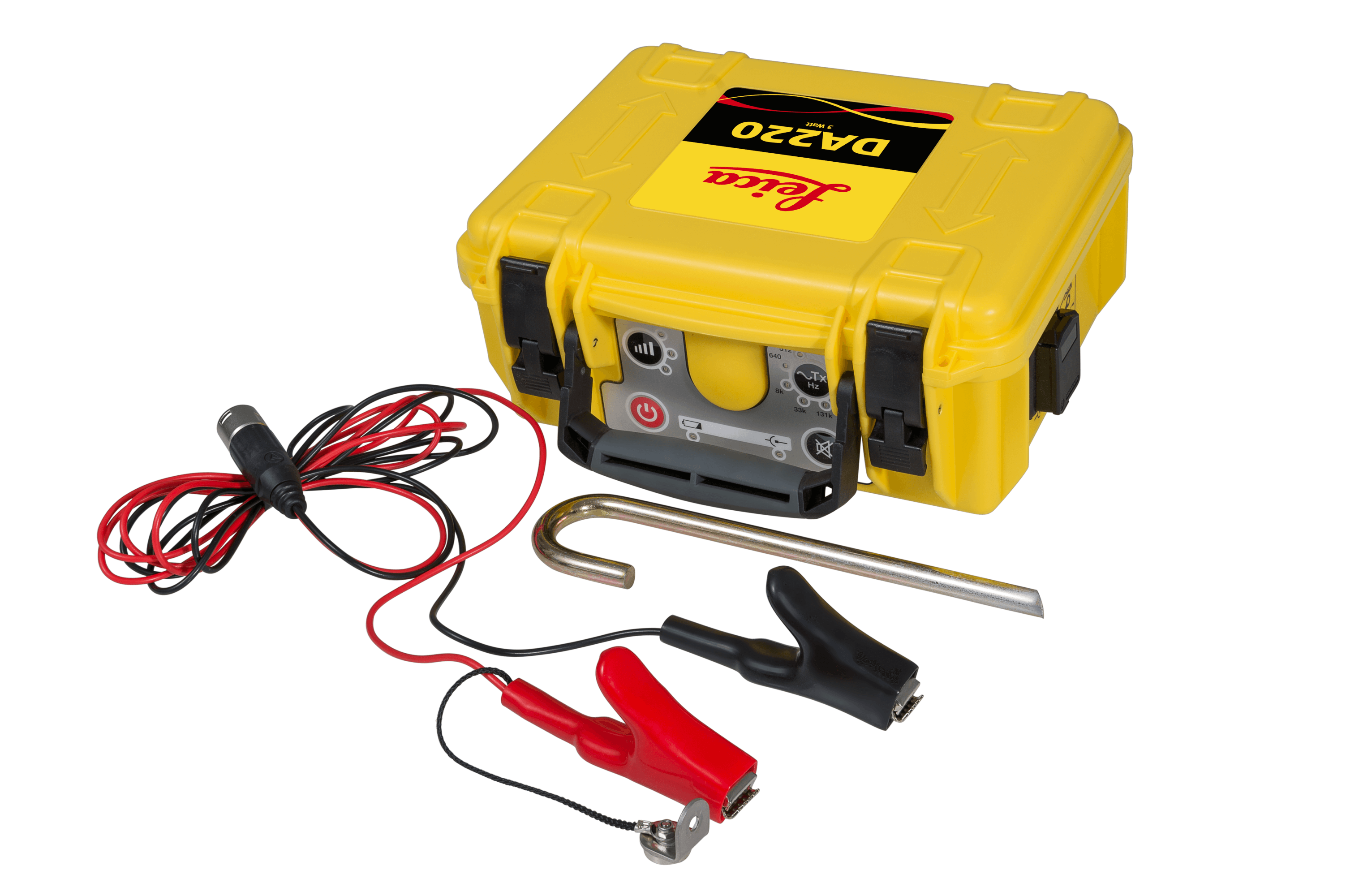

The Leica DA signal transmitters apply a signal onto underground cables or pipes that may not carry a detectable signal. The Leica DD SMART cable locators can then be used to locate the signal from the Leica DD signal transmitter.

The DA signal transmitters are compact, robust and easy-to-use. They have been designed in conjunction with the DD SMART cable locators to easily and accurately avoid, trace or locate buried cables and pipes.

Typically used to:

  • To improve the detection success.
  • To trace the route of a utility.
  • To make a depth or current measurement.

    Product Details

    DA220 Features

    • 1 Watt or 3 Watt options.
    • Compatible with; DD120 Locator DD220 SMART Locators

    Trace frequencies

    • 8kHz, 33kHz, 131kHz and combined (33 kHz +131 kHz)
    • Rechargeable Li-Ion battery as standard
    • IP67 rating
    • 3 Year warranty
    Model DA220 1W DA220 3W DA230 1W DA230 3W
    Induction Mode Frequencies 32.768 (33) kHz
    8.192 (8) kHz
    32.768 (33) kHz
    8.192 (8) kHz
    32.768 (33) kHz
    8.192 (8) kHz
    32.768 (33) kHz
    8.192 (8) kHz
    Power Output Up to 1 Watt Max. Up to 3 Watt Max. Up to 1 Watt Max. Up to 3 Watt Max.
    Direct Connection Mode Frequencies 131.072 (131) kHz
    32.768 (33) kHz
    8.192 (8) kHz
    131.072 (131) kHz
    32.768 (33) kHz
    8.192 (8) kHz
    131.072 (131) kHz
    32.768 (33) kHz
    8.192 (8) kHz
    512 Hz
    640 Hz
    131.072 (131) kHz
    32.768 (33) kHz
    8.192 (8) kHz
    512 Hz
    640 Hz
    Environmental Standard IP67 IP67 IP67 IP67
    Operating Temperature -20° C to +50° C
    -4° F to +122° F
    -20° C to +50° C
    -4° F to +122° F
    -20° C to +50° C
    -4° F to +122° F
    -20° C to +50° C
    -4° F to +122° F
    Storage Temperature -40°C to +70°C, / -40°F to +158°F -40°C to +70°C, / -40°F to +158°F -40°C to +70°C, / -40°F to +158°F -40°C to +70°C, / -40°F to +158°F
    Battery 7.4V Rechargable Li–ion 7.4V Rechargable Li–ion 7.4V Rechargable Li–ion 7.4V Rechargable Li–ion
    Battery operating time** 15 h 15 h 15 h 15 h
    Dimensions (HxWxD) 250 x 206 x 113 mm
    9.84 x 8.11 x 4.45 inches
    250 x 206 x 113 mm
    9.84 x 8.11 x 4.45 inches
    250 x 206 x 113 mm
    9.84 x 8.11 x 4.45 inches
    250 x 206 x 113 mm
    9.84 x 8.11 x 4.45 inches
    Weight with batteries 2.38Kg
    5.25 lbs
    2.38Kg
    5.25 lbs
    2.38Kg
    5.25 lbs
    2.38Kg
    5.25 lbs

    * Utility Impedence of 300 ohms

    * Defined at 20°c (77°F) power level 2
