Description

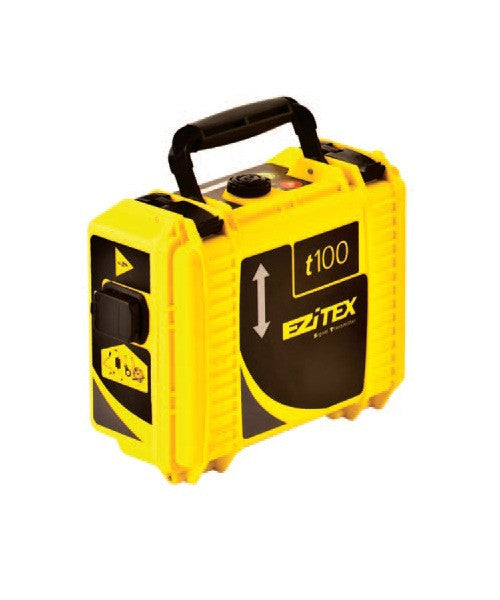

The i-Series signal transmitters (gennys) are compact, robust and easy to use. They are dual frequency transmitters that have been designed in conjunction with the EZiCAT cable locators to easily and accurately avoid, trace or locate buried cables and pipes.

We would always recommend using a EZiTEX signal transmitter whenever you are trying to locate buried utilities.

  • Improved utility detection in areas of high signal interference.
  • Enables depth estimation, when using a depth estimation cable locator.
  • Enables you to locate non-conductive utilities (i.e. not giving off an active signal) by applying an active signal onto the utilities. The signal can then be traced using any EZiCAT locator. Using a EZiTEX signal transmitters this way will help you locate around 50% more buried utilities than using an EZiCAT cable locator alone.

Product Details

Flexibility

  • Producing up to 1 watt of power through 8 kHz or 33 kHz or dual frequency modes and boasting an IP65 rating, the transmitter is fully protected even in the harshest of conditions.
  • Four adjustable output levels, delivering a maximum output level of 1 watt.
  • Durable waterproof design – environmental protection rating of IP65. Robust, compact and lightweight design engineered for tough site conditions.
  • Choice of 3 tracing signals :
    • 33K everyday site use, generally accepted as an industry standard.
    • 8K long tracing and reduced cross coupling.
    • 8 kHz & 33 kHz (Constant dual frequency available in connection mode)
  • Ease of use – default output frequency of 33K.
  • Externally located clear, audio visual controls. This ensures a robust waterproof design.
  • In built test function – allowing operators to test the hardware and software functionality of the EZiTEX before use.

Additional Information

  • Dust and water protection to IP65 (Lid closed)
  • Battery life: 30 hours intermittent use
  • Weight: 2.5kg
  • Dimensions- 113mm (H) x 206mm (D) x 250mm (W)

In the Box

  • EZiTEX Signal Generator with earth spike and cable kit
  • 4 x D alkaline (IEC LR20)
  • Quickstart Reference Guide
  • Safety Concepts Manual
  • CD-ROM containing User Manual & Certificate of Conformity
Signal
Generators
EZiTEX t100EZiTEX t100xf
Frequency8kHz, 33kHz8kHz, 33kHz
640Hz, 512Hz
ProtectionIP67 Case lid closed
IP65 Case lid open
IP67 Case lid closed
IP65 Case lid open
Connection Power Output
(when connected to a utility of
300 ohm)
Up to 1W maxUp to 1W max
Induction Power OutputUp to 1W maxUp to 1W max
Power Output Control4 power level settings4 power level settings
Batteries4 x D alkaline
(IEC LR20) supplied
4 x D alkaline
(IEC LR20) supplied
Battery operating time30 h intermittent use
(at 20°C)
30 h intermittent use
(at 20°C)
Weight & Dimensions (HxWxD)2.5 kg
113mm (H) x 206mm (D) x 250mm (W)
2.5 kg
113mm (H) x 206mm (D) x 250mm (W)
