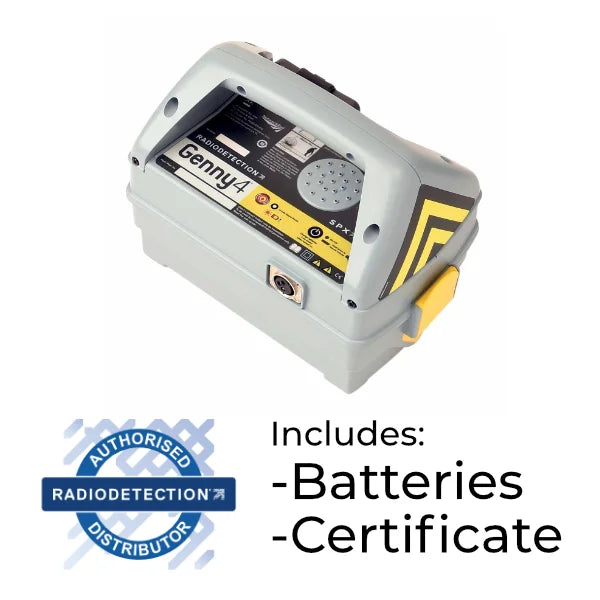

Radiodetection Genny4 Signal Generator
The Radiodetection Genny4 provides a simultaneous dual-frequency output signal which alongside the familiar 33 kHz locate signal, transmits a second frequency designed to facilitate the location of small diameter cables.
As safety critical tools the CAT4 and GENNY4 range of Cable Locator and Cable Avoidance Tools offer a number of features designed to support safe working and help to drive utility strike rates down.
Fast Easy Secure Shopping
No Account Required
The new Genny4, with a new integrated logic design, provides a class-first simultaneous dual-frequency signal output design. Alongside the familiar 33kHz locate signal for general purpose locates, the Genny4 transmits a second frequency designed to facilitate location of small diameter cables such as telecoms and street lighting, including spurs. For tricky locates, the new power boost function enables the locate signal to travel further and deeper, and couple onto utilities more easily.
Small Cable Locating
Simultaneous dual frequency and simple, intuitive, locating methods assist CAT4 and Genny4 users to locate Small Diameter cables such as telecom twisted pairs, CATV feeds, spurs and drop-offs which have historically been hard to find and a common strike risk.
Genny4 signal boost
Alongside its familiar standard power mode, Genny4 provides a Signal Boost feature which increases the output signal by up to a factor of 10, enabling operators to locate utilities deeper and over greater distances.
|Signal output power||0.1w|
|Signal boost output power||1w|
|Induction mode signal characteristic||33 kHz|
|Direct connection/signal clamp characteristic||33 kHz & Small Diameter Locate frequency
Automatic Impedance matching on connection
|Batteries||4 x LR20 (D) 1.5v Alkaline|
|Warranty||12 months from purchase|
