Description

The new Leica DD SMART utility locator solution, including the DD230/220 cable locator series, DX Shield software and signal transmitters is the only complete portfolio of detection solutions for utility professionals and anyone who is breaking ground.

The Leica DD SMART utility locators and DX Shield software open the door to a connected world, anywhere, anytime. The Leica DD SMART utility locators automatically identify underground assets deeper, faster and more accurately.

Understand site activity and utility locator use in greater detail with DX Shield software. The DD230/220 SMART locators are scalable and designed with the latest Bluetooth technology, providing a wire-free connection to field controllers and mobile devices.

Connect and download data stored in the DD SMART utility locators’ internal memory, including GPS positioning, and transfer back to the office. USB connectivity provides a convenient connection to DX Office Shield software for data download, analysis and product maintenance.

Leica DD SMART utility locators and DX Shield software provide a true single-source solution for all your field activities.

Use the DD220 and DD230 Smart cable locators in conjunction with a DA220 or A230 signal transmitter or range of accessories to achieve improved accuracy and application scope.

Product Details

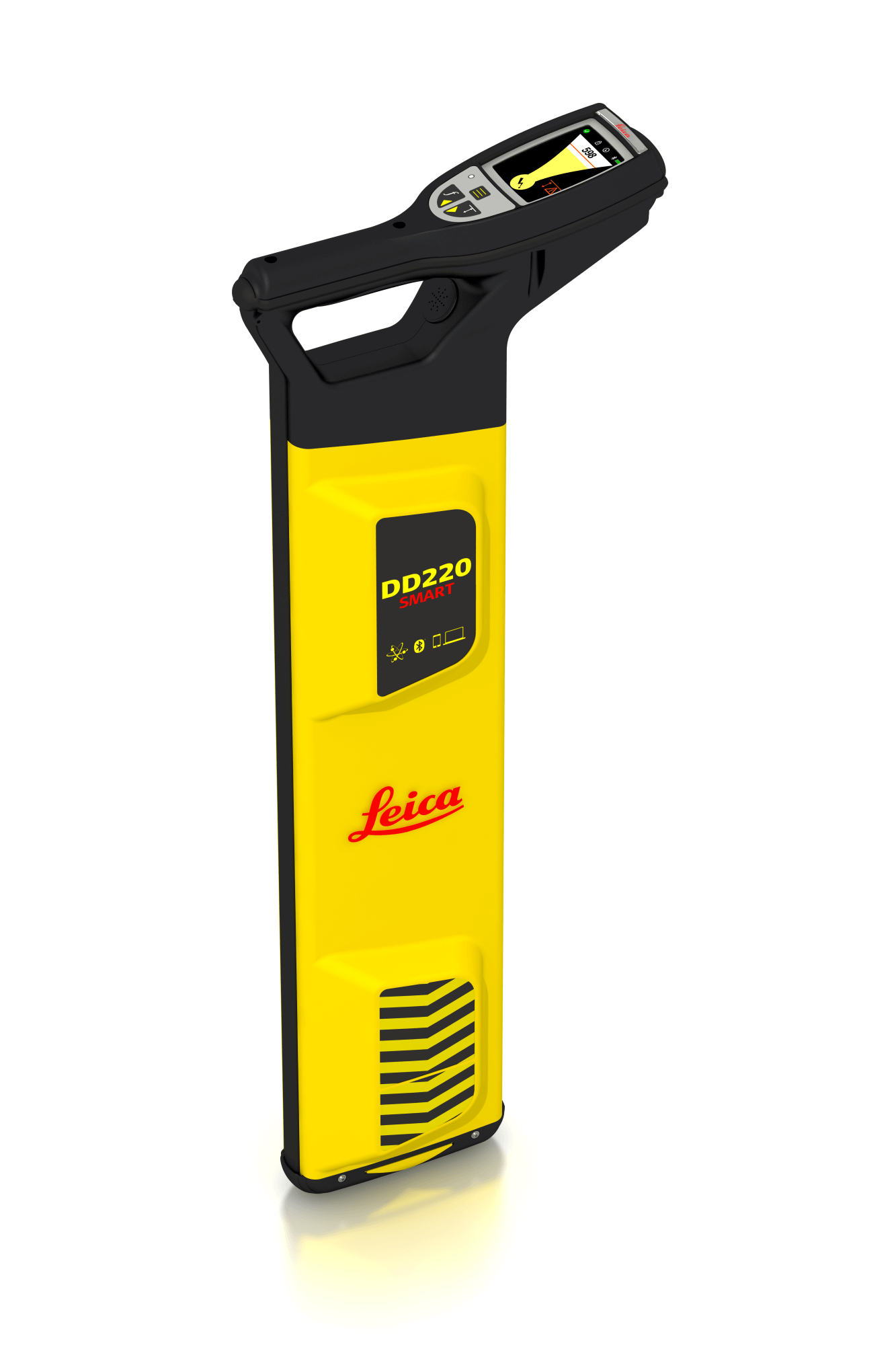

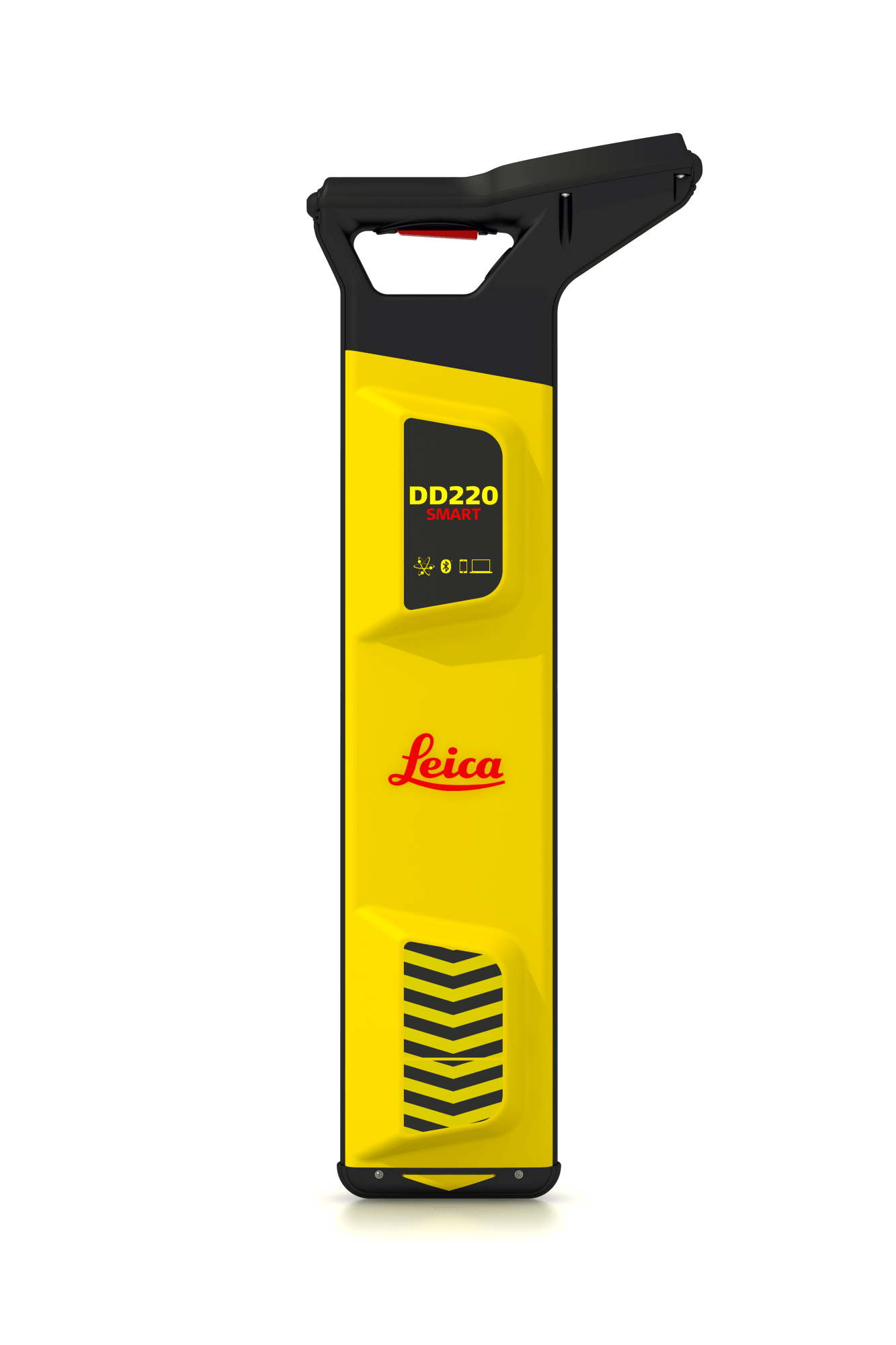

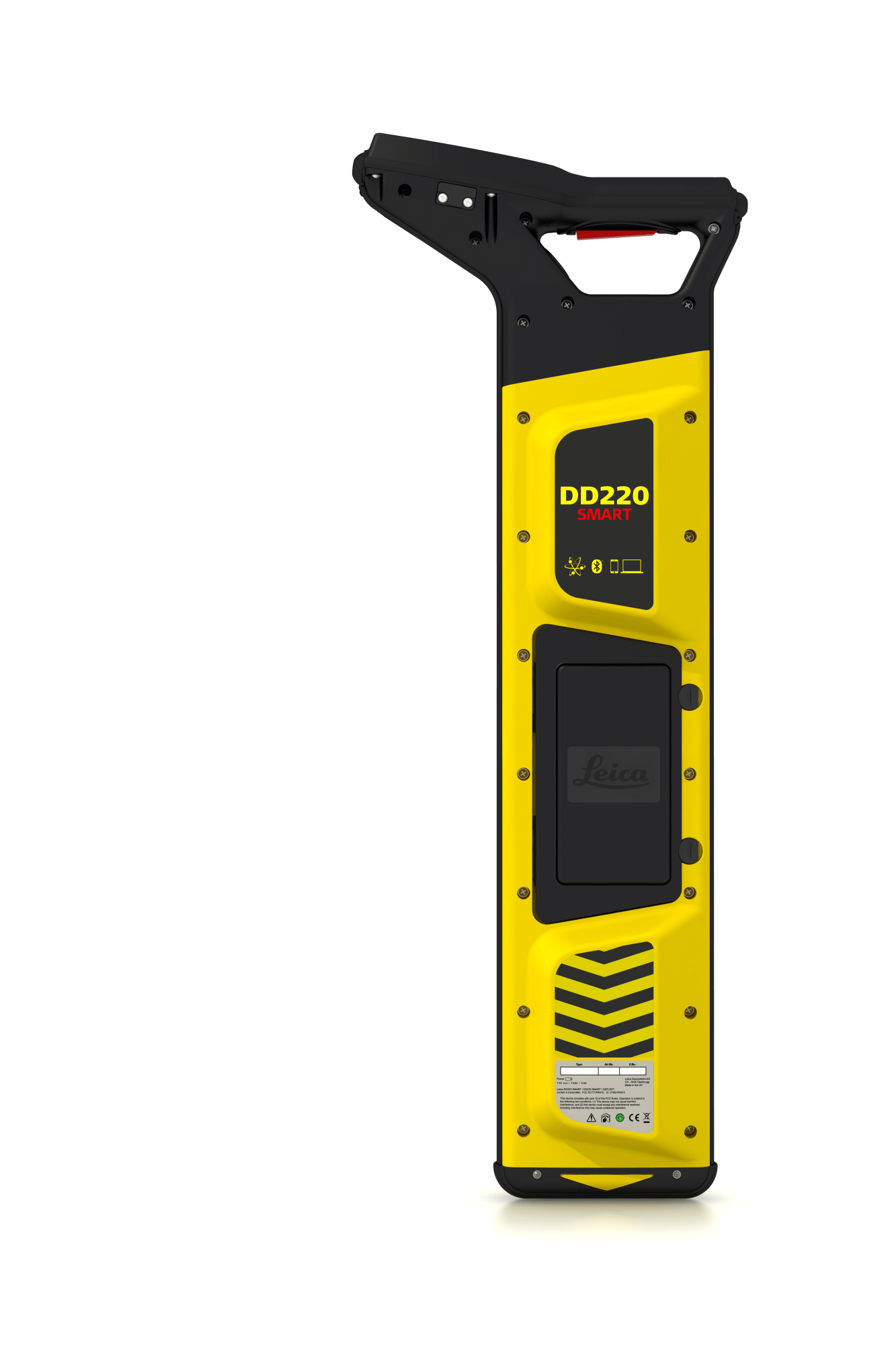

DD220 Smart Features

  • SMART Technology; GPS, Bluetooth, 8GB internal memory
  • Power, Radio, Auto modes
  • Transmitter modes, 131kHz, 33kHz, 8kHz or Auto (automatic detection of the transmitter signal)
  • Depth detection up to 7 meters (23 feet)
  • Good-to-Go Health Check and Start up test
  • On-board video user guides
  • IP66 rating - protection from dust and water
  • Web Calibration Verification
  • 3 year warranty
MODE DD220 SMART DD230 SMART
Power 50 / 60 Hz mains electrical and harmonics 50 / 60 Hz mains electrical and harmonics
Radio 15kHz to 60kHz 15kHz to 60kHz
Auto Power, Radio, 33kHz Power, Radio, 33kHz
Transmitter Modes 131.072 (131) kHz
32.768 (33) kHz
8.192 (8) kHz
131.072 (131) kHz
32.768 (33) kHz
8.192 (8) kHz
512 Hz
640 Hz
Depth Range Line 0.1m to 5m
Line 4 inches to 16.4 feet
Sonde 0.1m to 7m
Sonde 4 inches to 23 feet
Line 0.1m to 7m
4 inches to 23 feet
Sonde 0.1 to 10m
Sonde 4 inches to 32.8 feet
Depth Accuracy* 5% 5%
Bluetooth Class 2 BLE dual mode module
Bluetooth Classic 2.1
Bluetooth 4.0 (LE)
Class 2 BLE dual mode module
Bluetooth Classic 2.1
Bluetooth 4.0 (LE)
GPS** Chipset (1): u-blox®GPS
Reciever Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1
Accuracy (2): Horizontal Position 2.5 m
Autonomous, 2.0 m SBAS,CEP
Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical
Chipset (1): u-blox®GPS
Reciever Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1
Accuracy (2): Horizontal Position 2.5 m
Autonomous, 2.0 m SBAS,CEP
Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical
Memory Capacity 8 GB internal memory 8 GB internal memory
Environmental Standard IP66 IP66
Operating Temperature -20 °C to +50 °C
-4 °F to +122°F
-20 °C to +50 °C
-4 °F to +122°F
Battery 7.4V Rechargeable Li – Ion 7.4V Rechargeable Li – Ion
Battery operating time *** 15 h 15 h
Dimensions (HxWxD) 765x290 x93mm
30.12 x11.42x3.66 inches
765x290 x93mm
30.12 x11.42x3.66 inches

*Depth to an undistorted signal
** (1) All data/information according to manufacturer u-blox®GPS; Leica Geosystems does not assume any liability whatsoever for such information.
(2) Accuracy is dependent upon various factors including atmospheric conditions, multipath, obstructions, signal geometry and number of tracked satellites.
*** Constant use at 20°C/68°F
