Powerful 3 watt Signal Output
Compatible with most 8 & 33 kHz Cable Locators
512 Hz and 640 Hz Enabled
Compact Lightweight Design
Rechargeable Li-Ion Battery
3 Year Manufacturer Warranty
Fast Easy Secure Shopping
No Account Required

Description

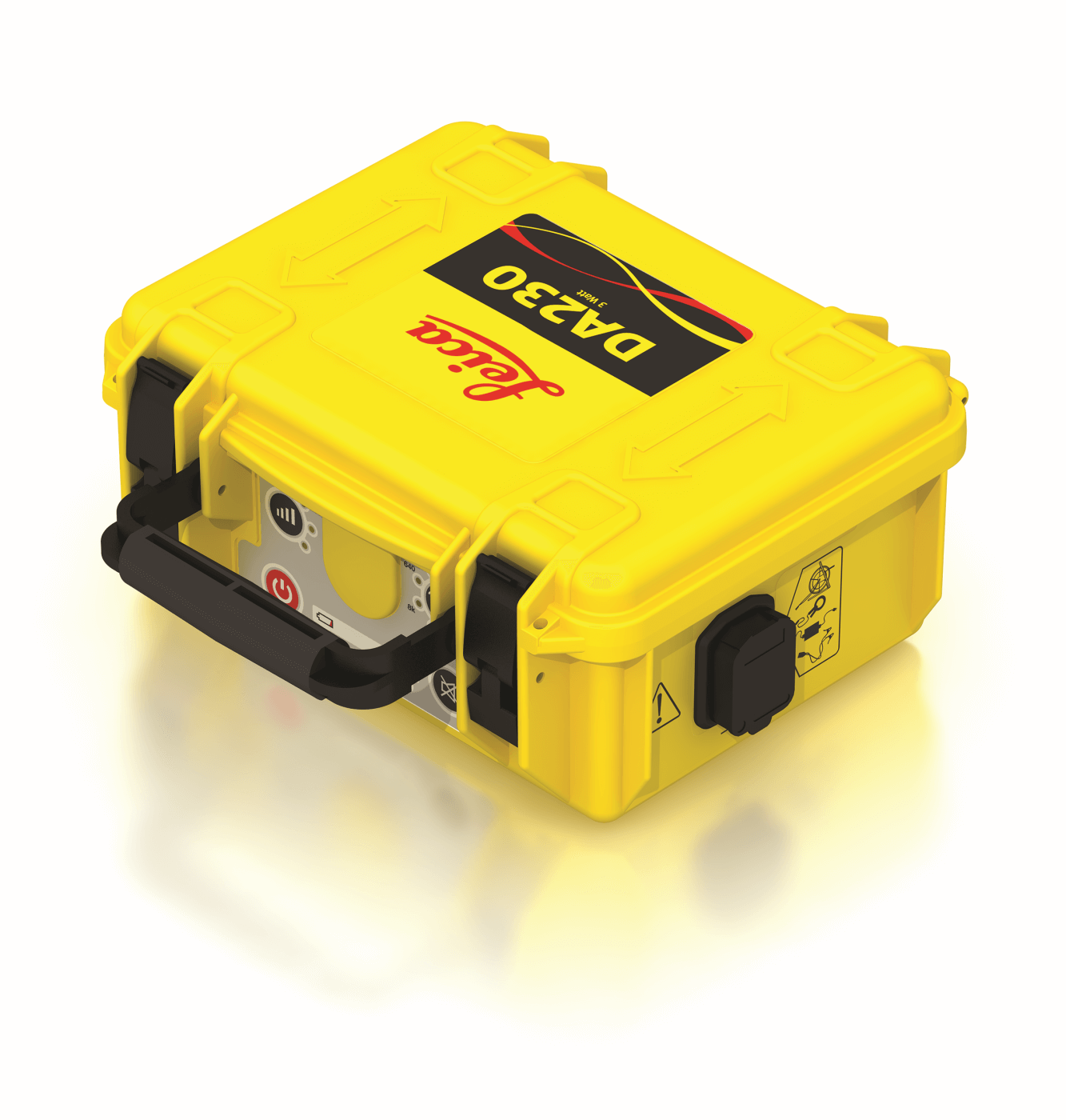

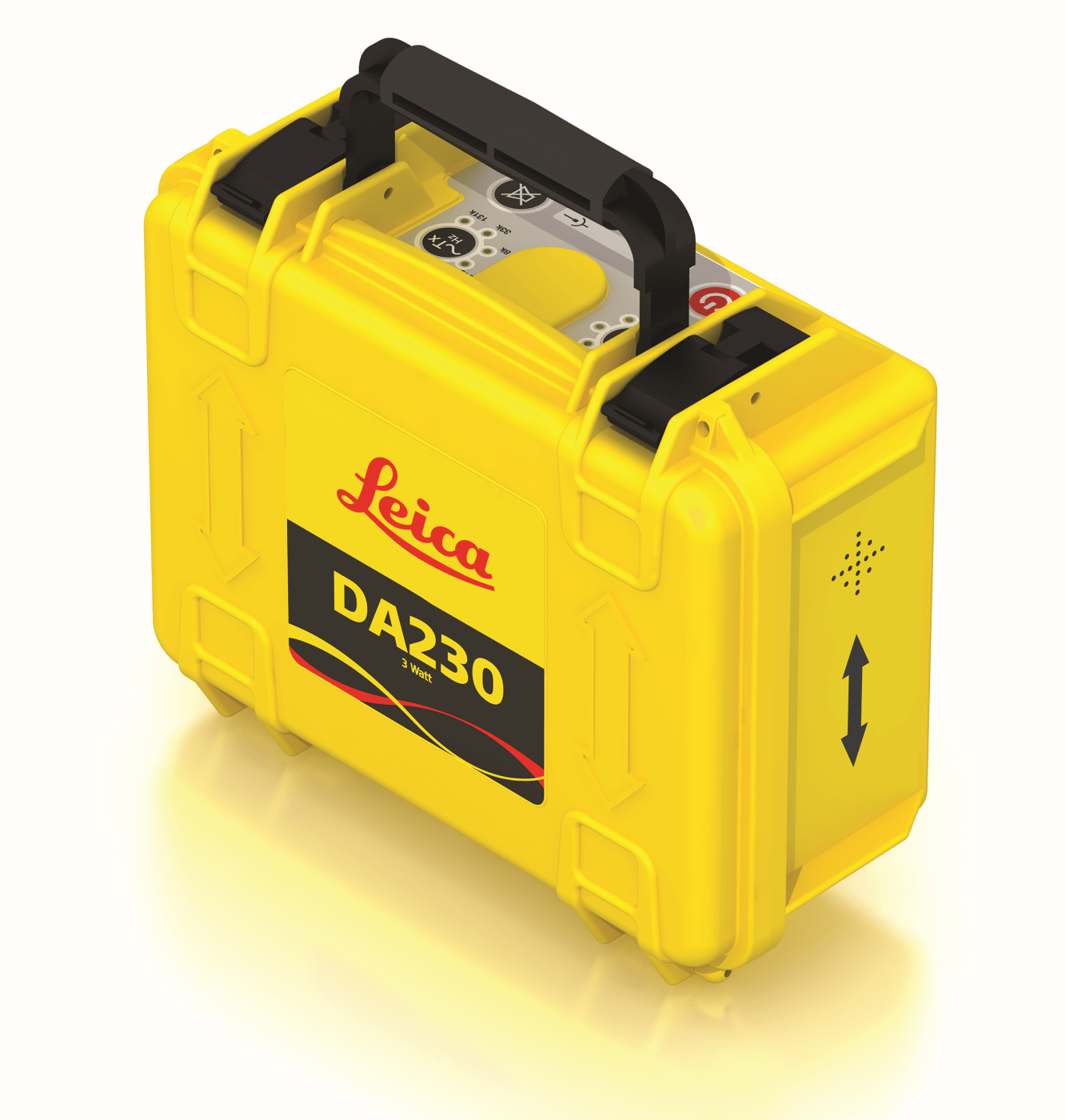

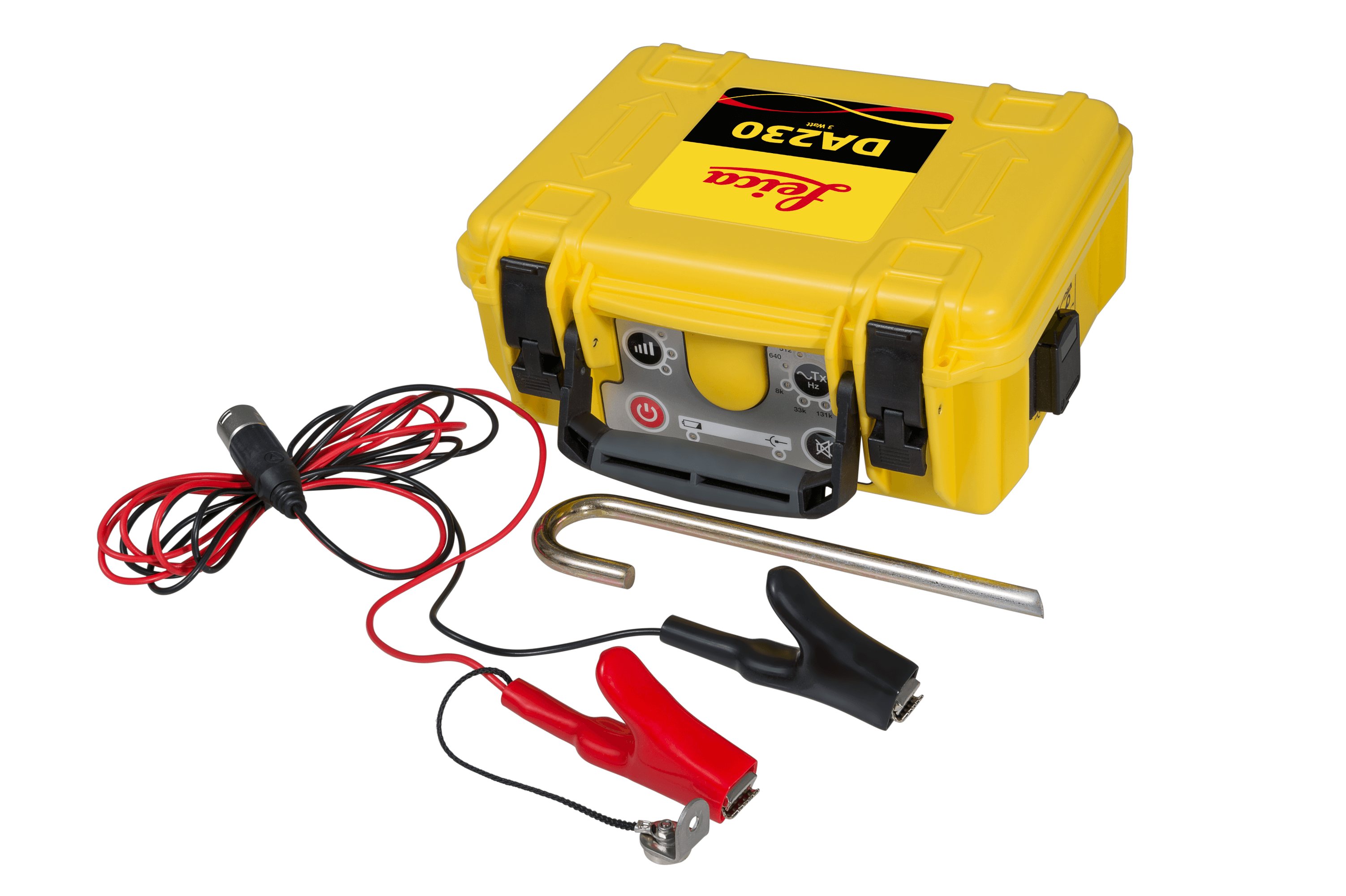

The Leica DA signal transmitters apply a signal onto underground cables or pipes that may not carry a detectable signal. The Leica DD SMART cable locators can then be used to locate the signal from the Leica DD signal transmitter.

The DA signal transmitters are compact, robust and easy-to-use. They have been designed in conjunction with the DD SMART cable locators to easily and accurately avoid, trace or locate buried cables and pipes.

Typically used to:

  • To improve the detection success.
  • To trace the route of a utility.
  • To make a depth or current measurement.

Features additional 512Hz and 640Hz Frequencies.

Product Details

DA230 Features

  • 1 Watt or 3 Watt options.
  • Compatible with; DD130 Locator DD230 SMART Locators

Trace frequencies

  • 512Hz, 640Hz, 8kHz, 33kHz, 131kHz and combined (33 kHz +131 kHz)
  • Rechargeable Li-Ion battery as standard
  • IP67 rating
  • 3 Year warranty
Model DA220 1W DA220 3W DA230 1W DA230 3W
Induction Mode Frequencies 32.768 (33) kHz
8.192 (8) kHz
32.768 (33) kHz
8.192 (8) kHz
32.768 (33) kHz
8.192 (8) kHz
32.768 (33) kHz
8.192 (8) kHz
Power Output Up to 1 Watt Max. Up to 3 Watt Max. Up to 1 Watt Max. Up to 3 Watt Max.
Direct Connection Mode Frequencies 131.072 (131) kHz
32.768 (33) kHz
8.192 (8) kHz
131.072 (131) kHz
32.768 (33) kHz
8.192 (8) kHz
131.072 (131) kHz
32.768 (33) kHz
8.192 (8) kHz
512 Hz
640 Hz
131.072 (131) kHz
32.768 (33) kHz
8.192 (8) kHz
512 Hz
640 Hz
Environmental Standard IP67 IP67 IP67 IP67
Operating Temperature -20° C to +50° C
-4° F to +122° F
-20° C to +50° C
-4° F to +122° F
-20° C to +50° C
-4° F to +122° F
-20° C to +50° C
-4° F to +122° F
Storage Temperature -40°C to +70°C, / -40°F to +158°F -40°C to +70°C, / -40°F to +158°F -40°C to +70°C, / -40°F to +158°F -40°C to +70°C, / -40°F to +158°F
Battery 7.4V Rechargable Li–ion 7.4V Rechargable Li–ion 7.4V Rechargable Li–ion 7.4V Rechargable Li–ion
Battery operating time** 15 h 15 h 15 h 15 h
Dimensions (HxWxD) 250 x 206 x 113 mm
9.84 x 8.11 x 4.45 inches
250 x 206 x 113 mm
9.84 x 8.11 x 4.45 inches
250 x 206 x 113 mm
9.84 x 8.11 x 4.45 inches
250 x 206 x 113 mm
9.84 x 8.11 x 4.45 inches
Weight with batteries 2.38Kg
5.25 lbs
2.38Kg
5.25 lbs
2.38Kg
5.25 lbs
2.38Kg
5.25 lbs

* Utility Impedence of 300 ohms

* Defined at 20°c (77°F) power level 2
