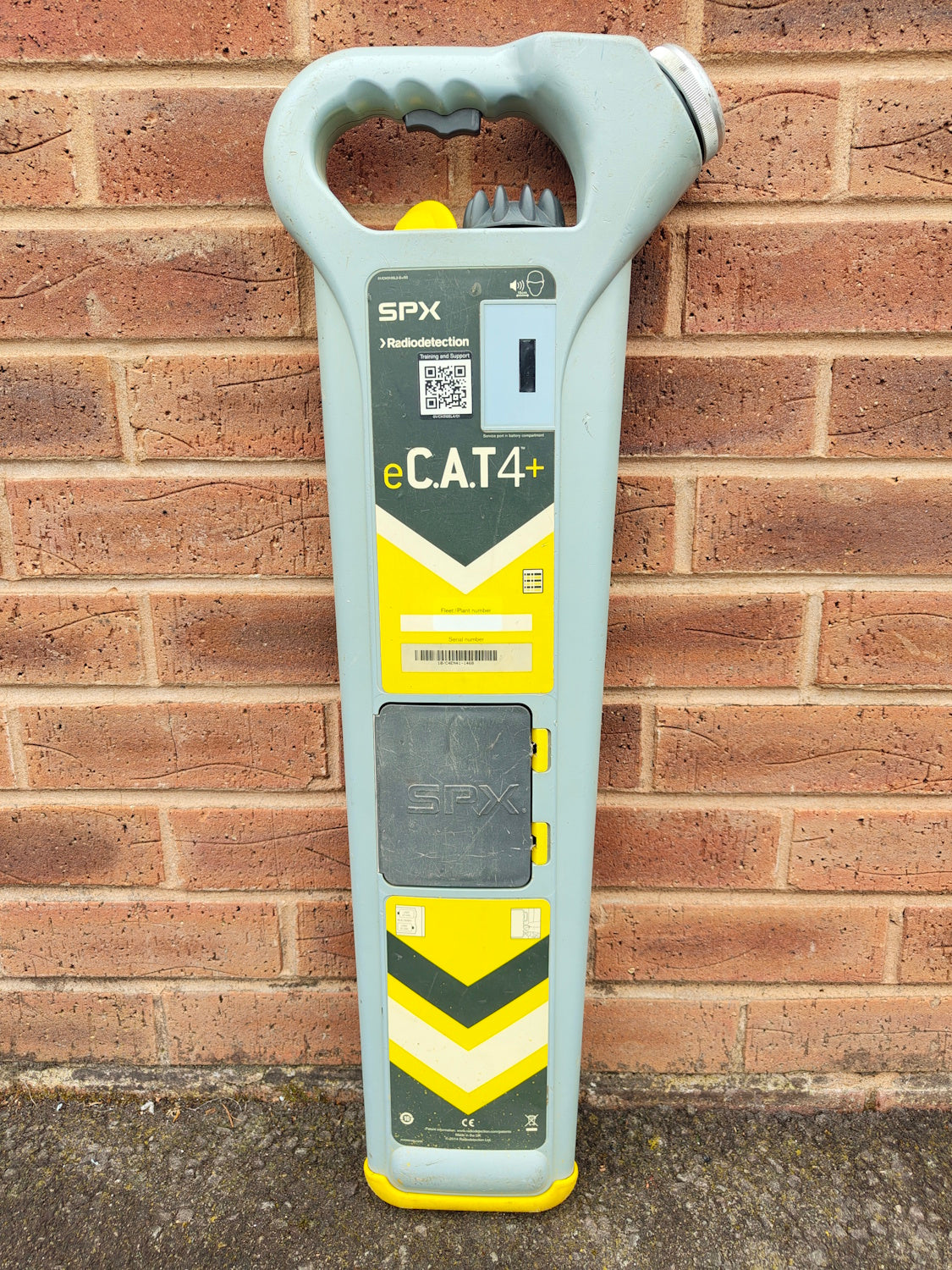

Refurbished - Radiodetection eCAT4+ with Depth and Datalogging

Name: Refurbished - Radiodetection eCAT4+ with Depth and Datalogging
Brand: Radiodetection
Price: 480.00 GBP

RRP:

Vendor: Radiodetection

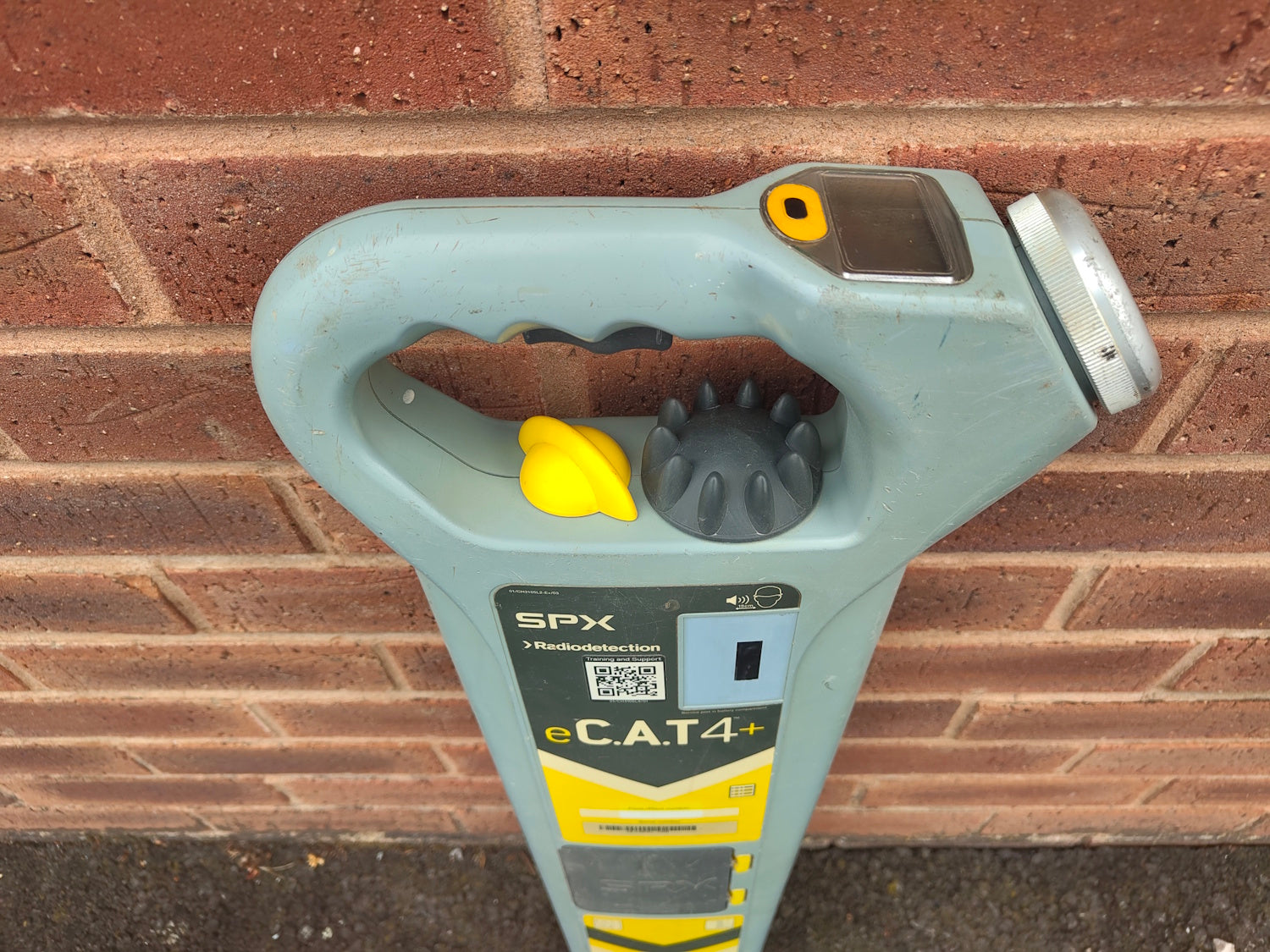

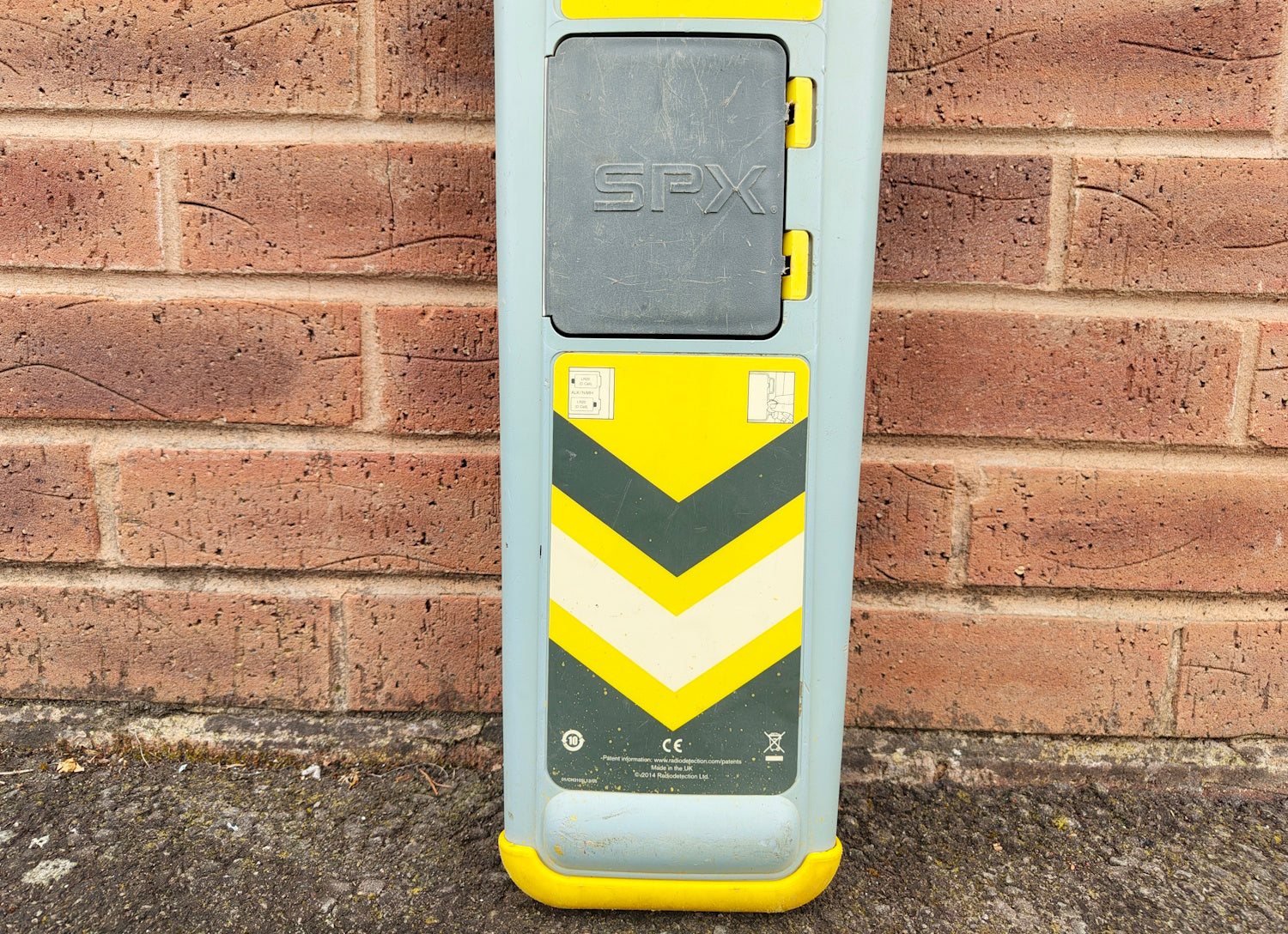

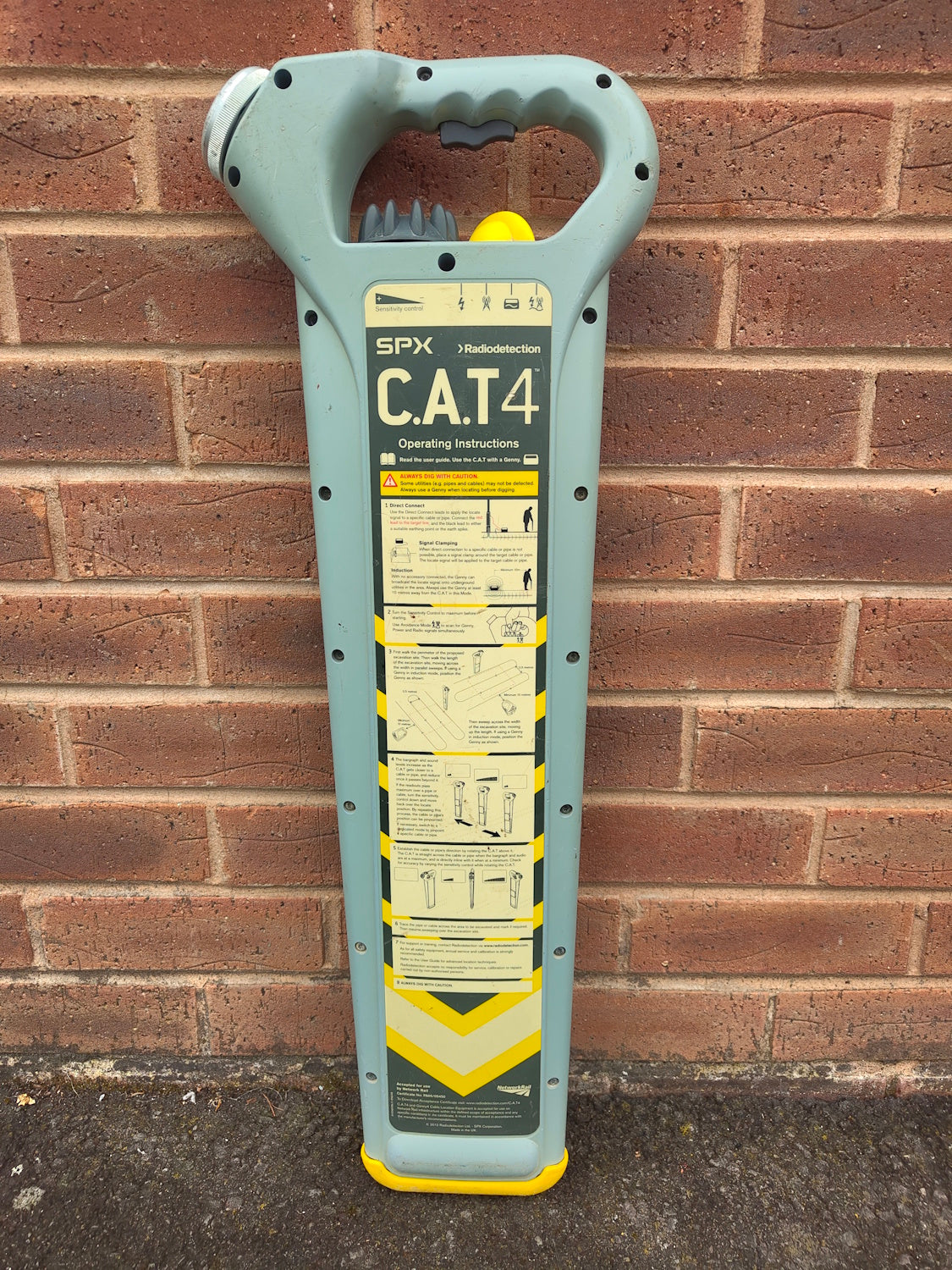

This listing is for refurbished equipment. Pictures are examples of the condition. The actual locator you will receive will be different but in similar condition.

The Radiodetection eCAT4+ with Depth Measurement is a datalogging model, storing the daily usage of the instrument along with an accurate depth reading when used with a Genny4.

	12 Month Calibration Certificate Included
	Varta Alkaline Batteries Included

Fast Easy Secure Shopping

No Account Required

Description

Supplied with batteries and 12-month calibration certificate and batteries.

This listing is for refurbished equipment. Pictures are examples of the condition. The actual locator you will receive will be different but in similar condition.

Product Details

Features

Datalogging -
The eCAT4 and gCAT4 series products can store upto 2 year’s worth of the key measurements and modes of operation.

C.A.T Manager™ can be used to export log files to enable detailed data usage analysis offering multiple benefits such as identifying training and development needs, and providing independent historical records of the instrument’s use.

Backed-up data on a PC gives virtually unlimited record keeping for the life of the product.

Dynamic Overload Protection
Radiodetection’s unique digital signal processing capabilities equips the CAT4 with the ability to reject electrical interference. Dynamic Overload Protection gives CAT4 series products the ability to continue operating in electrically challenging areas, such as near substations and under power cables, where other locators’ detection circuitry may be overloaded and no longer function.

Avoidance Mode™
Sweep an area of Power, Radio and Genny signals simultaneously, saving time. CAT4 lets operators control the sensitivity of each mode/signal, enabling buried utilities to be pinpointed in a single pass, while Real Sound provides audio feedback derived directly from the utility located, easing identification to maximise speed whilst maintaining safety.

SWING™
Radiodetection CAT's are designed to respond exceptionally fast to even the smallest detectable underground signals. Radiodetection's research into underground signal detection has shown that the ability of an operator to identify these buried utilities is directly affected by careless working practices such as excessive or rapid swinging.

To further reduce utility strike risks, eCAT4 units are equipped with sensors to detect such incorrect usage and warn the operator with an alert that is also stored in the data log.

Technical Specification

C.A.T4 Technical Specifications		Locating Depth Guide (m)
Locate Performance	Frequency Range	Sensitivity @1M	Good Conditions	Poor Conditions
Power Signals	50 Hz - 1.5 kHz	3mA	3	2
Radio Signals	15 kHz - 30 kHz	25μA	2	1
Genny4 Signals	32.768 kHz ±20 Hz 131.072 kHz ±20 Hz	5μA	4	2
Avoidance Mode (A)	P + R + G as above	as above	4	2

Dynamic Range	120dB @ 10Hz
Dynamic Overload Protection	40dB @ 50hz (automatic)
Locate Accuracy	±10% of depth
Depth Accuracy	Line: 5% 0.1m to 3m (4in to 10ft)
(on undistorted signal with no adjacent signals)	Sonde: 5% 0.1m to 7m (4in to 16ft)
Horizontal GPS Position Accuracy	3m CEP (Circular Error Probable)
Operating Temperature Range	-20 to 50°C
Storage Temperature Range	-20 to 70°C
Environmental Protection	IP54
Batteries	2 x LR20 (D) 1.5V alkaline Compatible with D type NiMH rechargeable batteries
Data Interface	USB 2.0, Bluetooth®
Recommended Service Interval	1 Year
Warranty	12 months from purchase
Data Storage Capacity	2 GB
Calibration Due Warning	Countdown from 31 days before use
