Description

Supplied with batteries and 12-month calibration certificate and batteries.

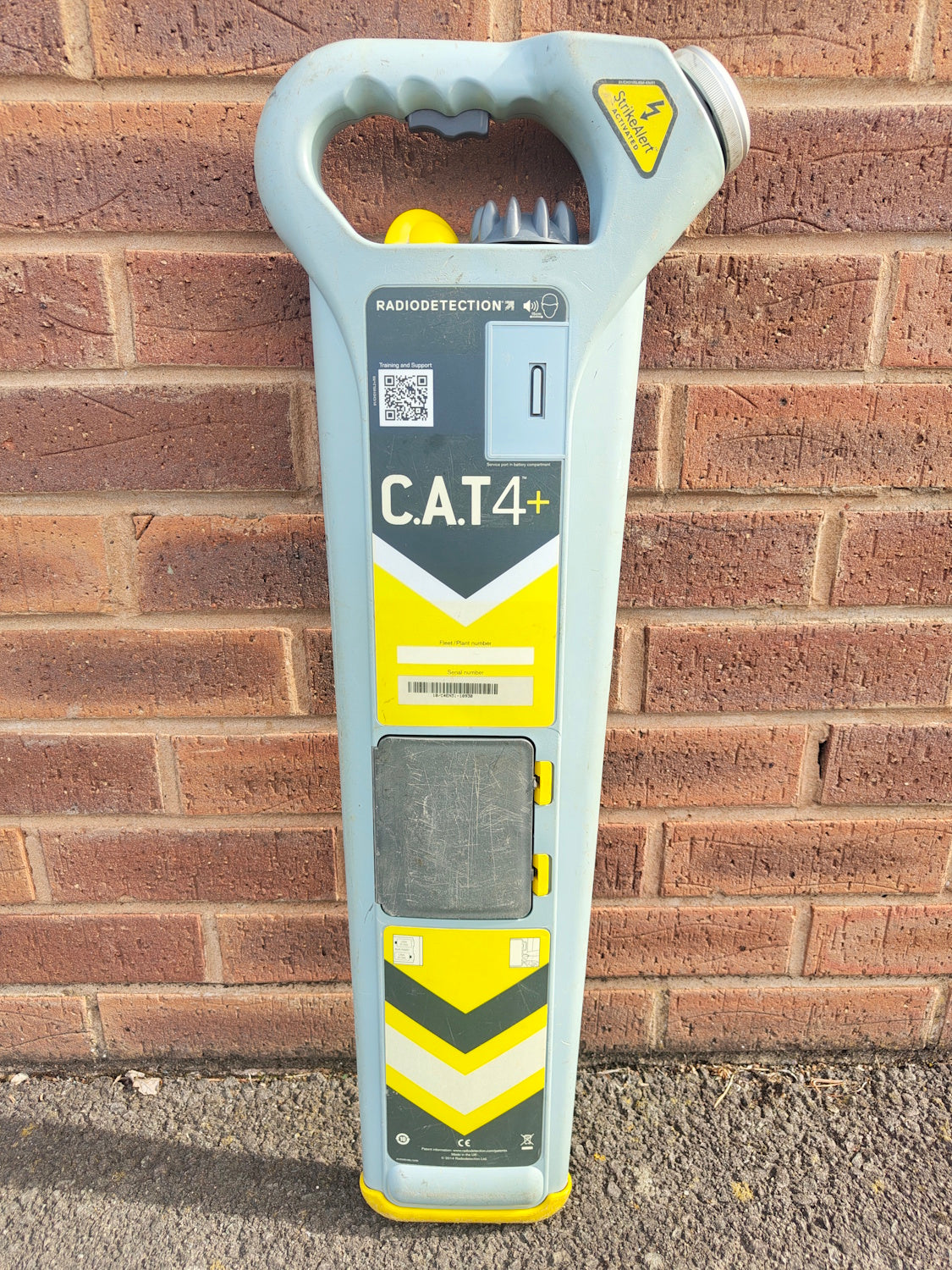

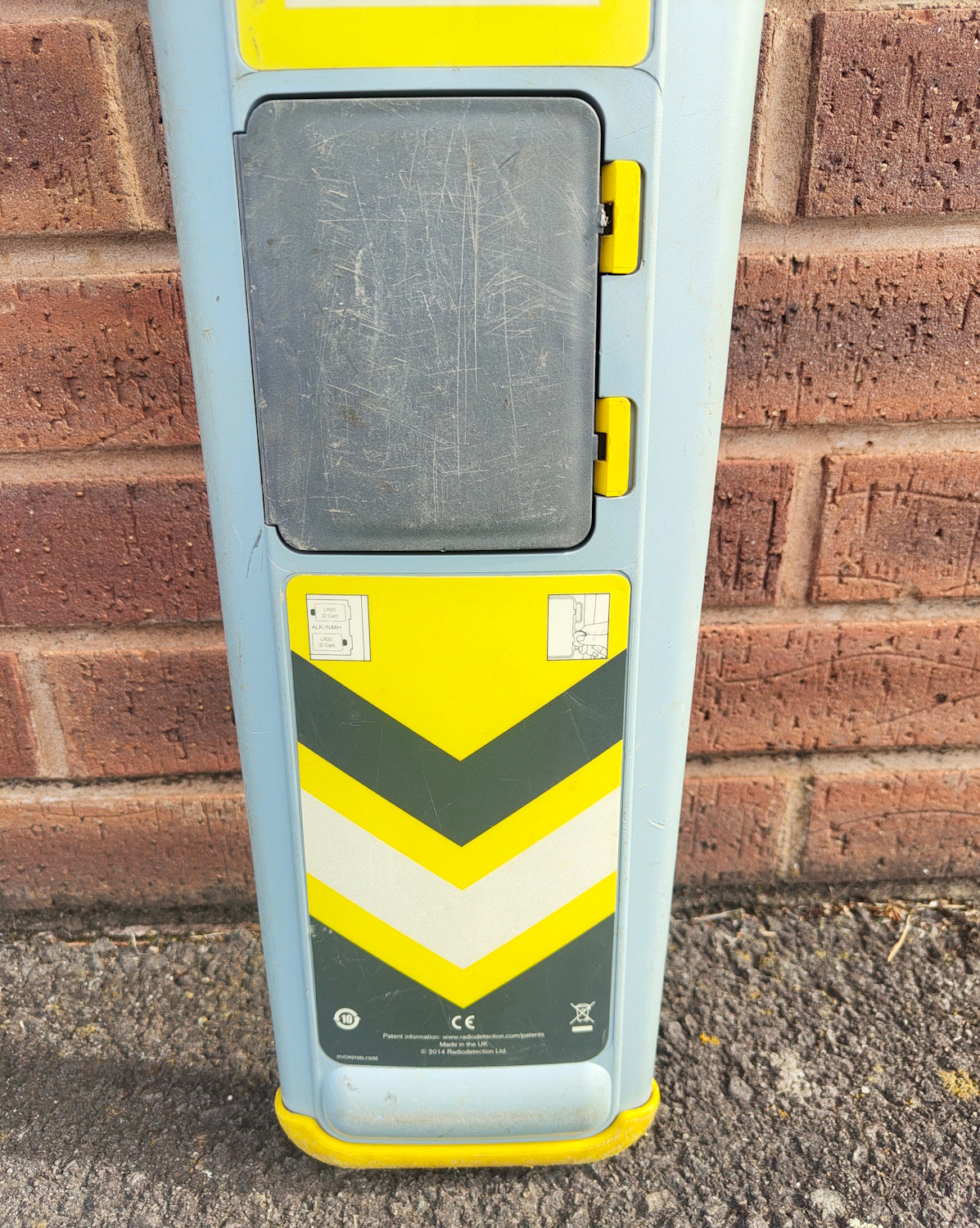

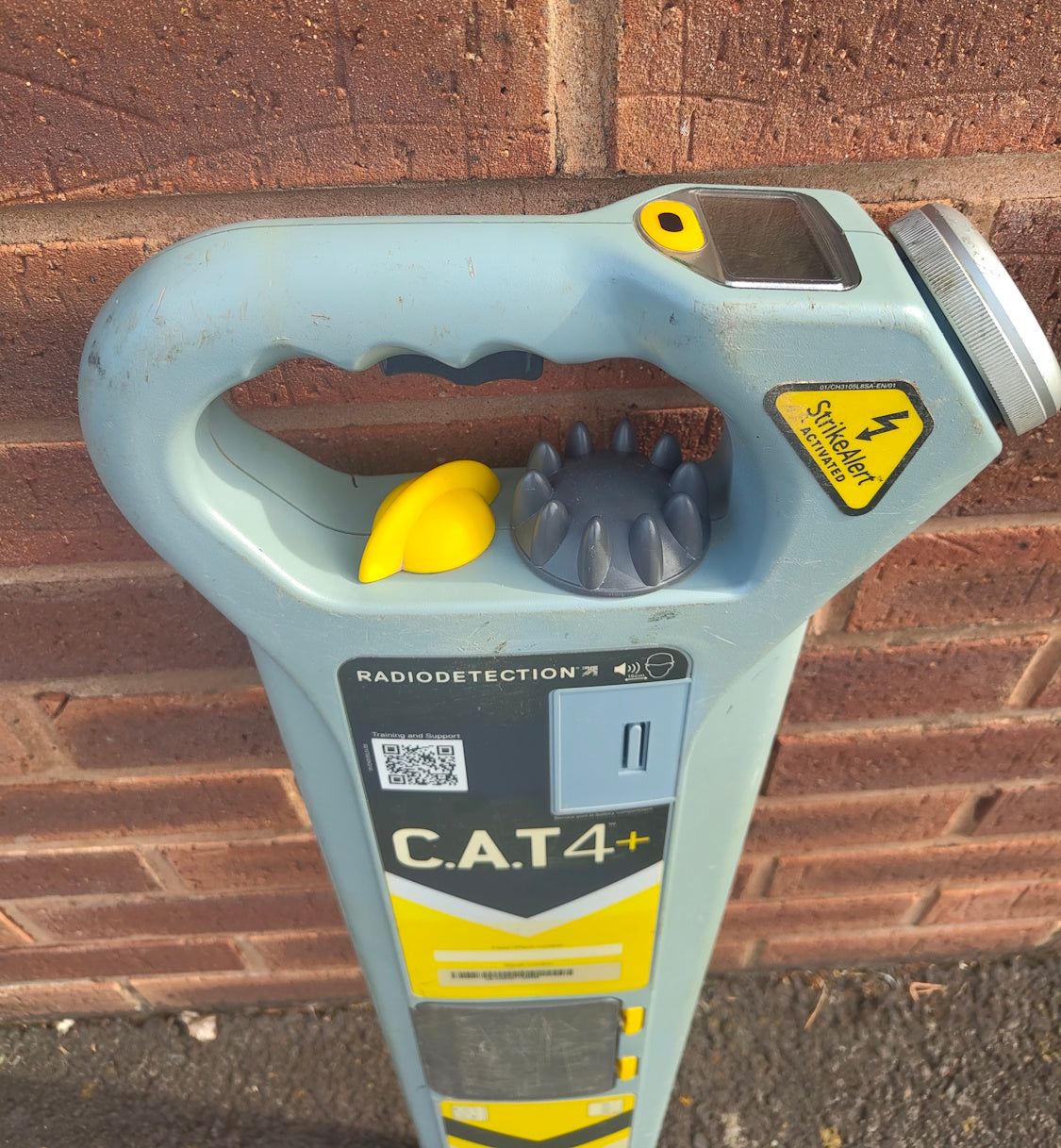

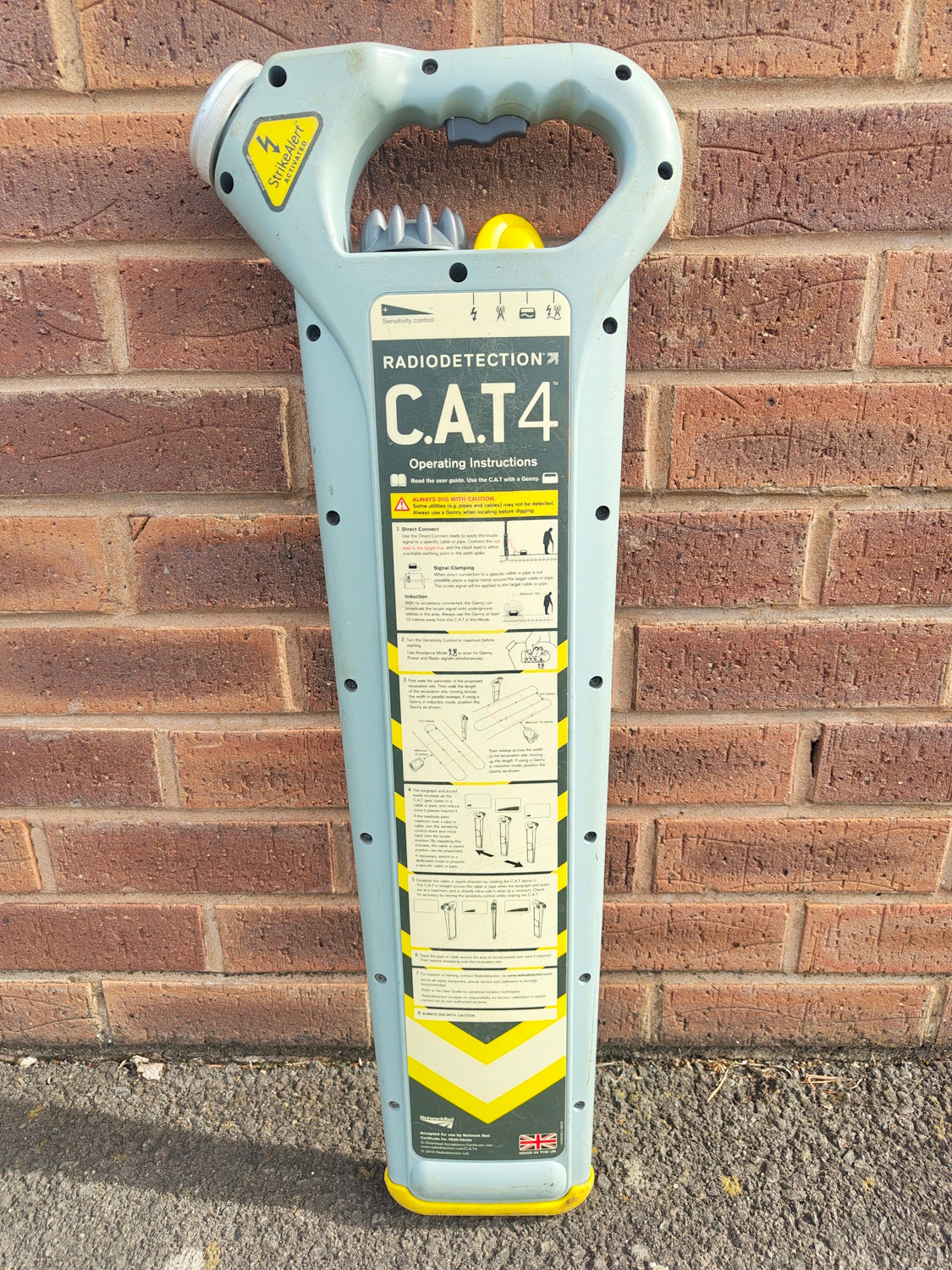

This listing is for refurbished equipment. Pictures are examples of the condition. The actual locator you will receive will be different but in similar condition. Screens may have minor scratches.



Product Details

StrikeAlert™
Minimise the risk of hitting a shallow cable with the optional StrikeAlert™ which has been enhanced and optimised to reduce the instances of false warnings.


Dynamic Overload Protection
Radiodetection’s unique digital signal processing capabilities equips the CAT4 with the ability to reject electrical interference. Dynamic Overload Protection gives CAT4 series products the ability to continue operating in electrically challenging areas, such as near substations and under power cables, where other locators’ detection circuitry may be overloaded and no longer function.


Avoidance Mode™
Sweep an area of Power, Radio and Genny signals simultaneously, saving time. CAT4 lets operators control the sensitivity of each mode/signal, enabling buried utilities to be pinpointed in a single pass, while Real Sound provides audio feedback derived directly from the utility located, easing identification to maximise speed whilst maintaining safety.

C.A.T4 Technical Specifications Locating Depth Guide (m)
Locate Performance Frequency Range
Sensitivity @1M
Good Conditions
Poor Conditions
Power Signals 50 Hz - 1.5 kHz 3mA 3 2
Radio Signals15 kHz - 30 kHz25μA21
Genny4 Signals32.768 kHz ±20 Hz
131.072 kHz ±20 Hz
5μA42
Avoidance Mode (A)P + R + G
as above
as above42
Dynamic Range120dB @ 10Hz
Dynamic Overload Protection40dB @ 50hz (automatic)
Locate Accuracy±10% of depth
Depth AccuracyLine: 5% 0.1m to 3m (4in to 10ft)
(on undistorted signal with no adjacent signals)Sonde: 5% 0.1m to 7m (4in to 16ft)
Horizontal GPS Position Accuracy3m CEP (Circular Error Probable)
Operating Temperature Range-20 to 50°C
Storage Temperature Range-20 to 70°C
Environmental ProtectionIP54
Batteries2 x LR20 (D) 1.5V alkaline
Compatible with D type NiMH rechargeable batteries
Data InterfaceUSB 2.0, Bluetooth®
Recommended Service Interval1 Year
Warranty12 months from purchase
Data Storage Capacity2 GB
Calibration Due WarningCountdown from 31 days before use
